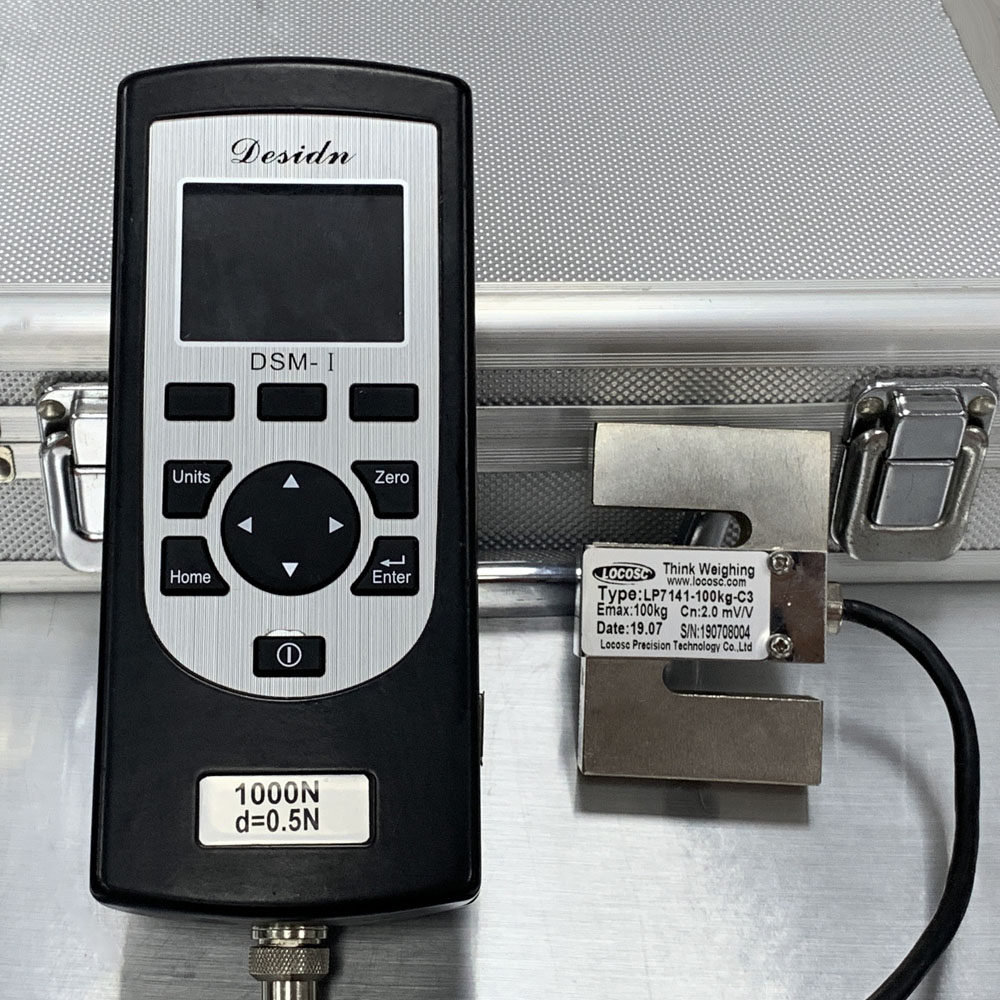

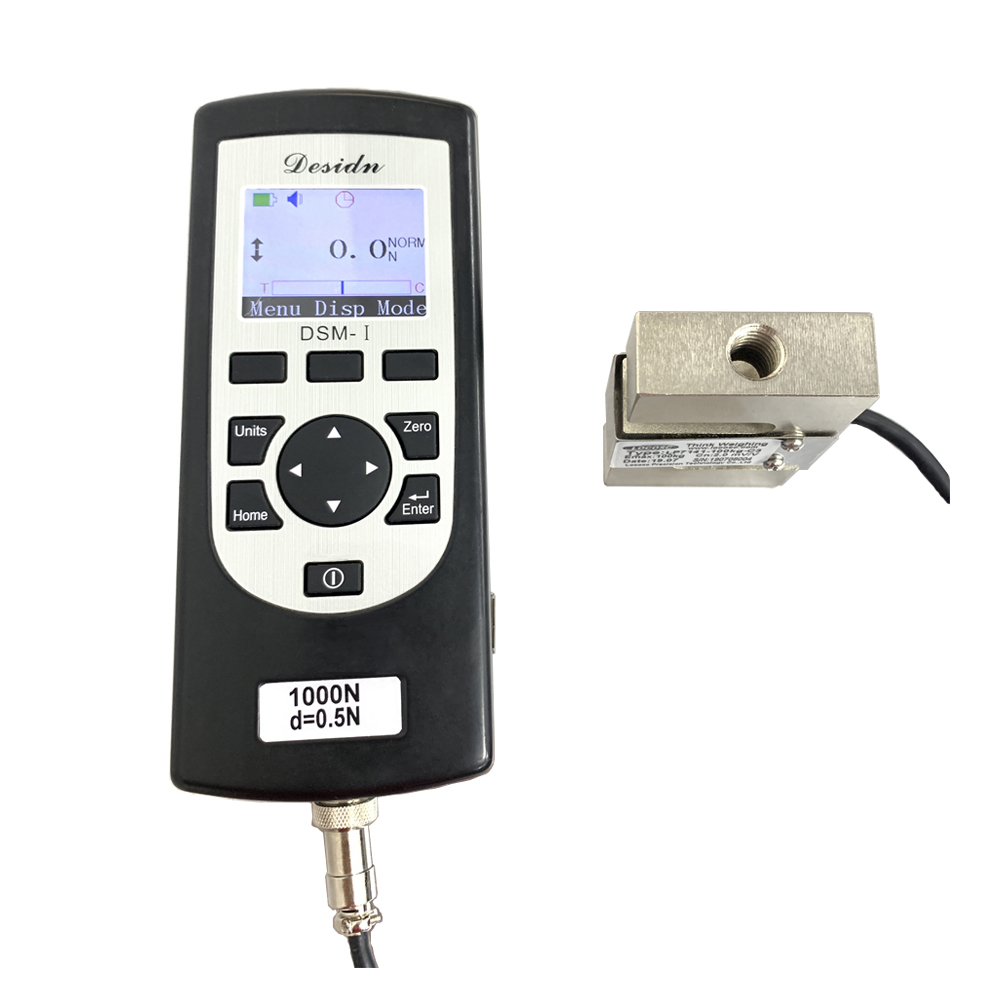

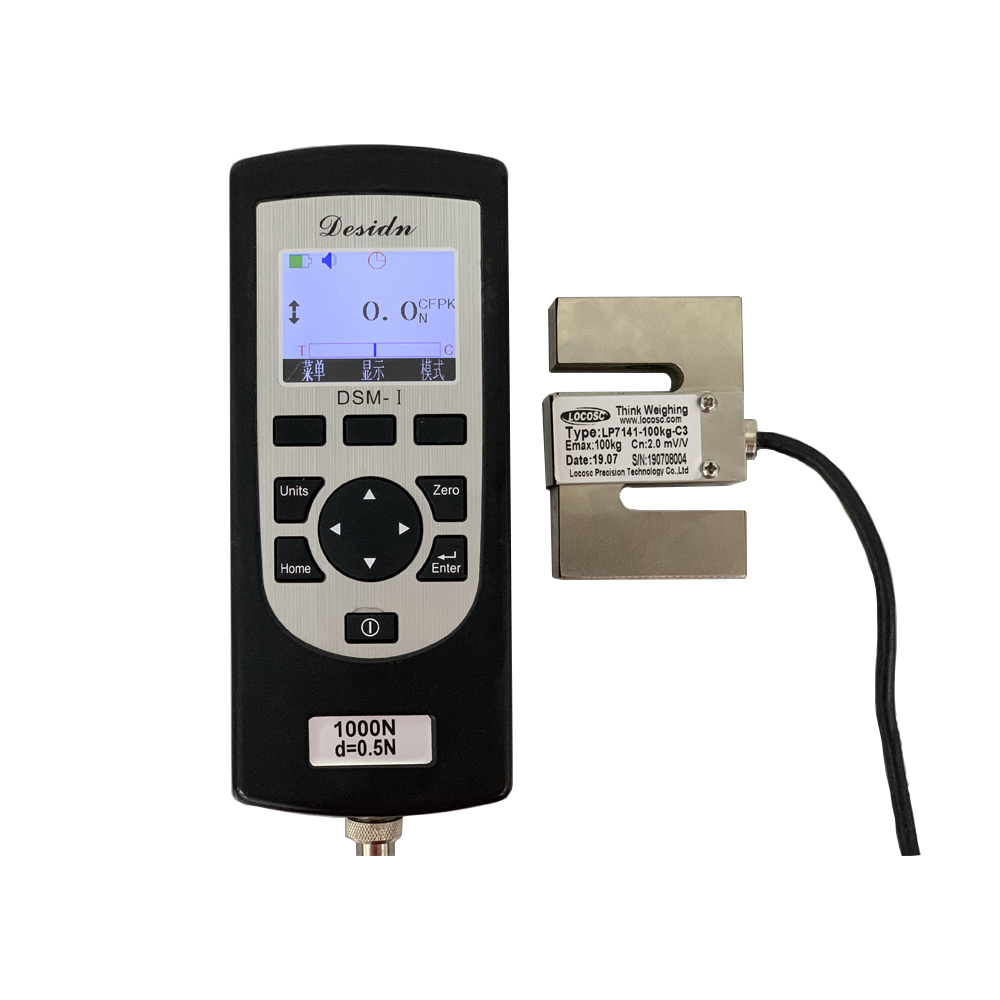

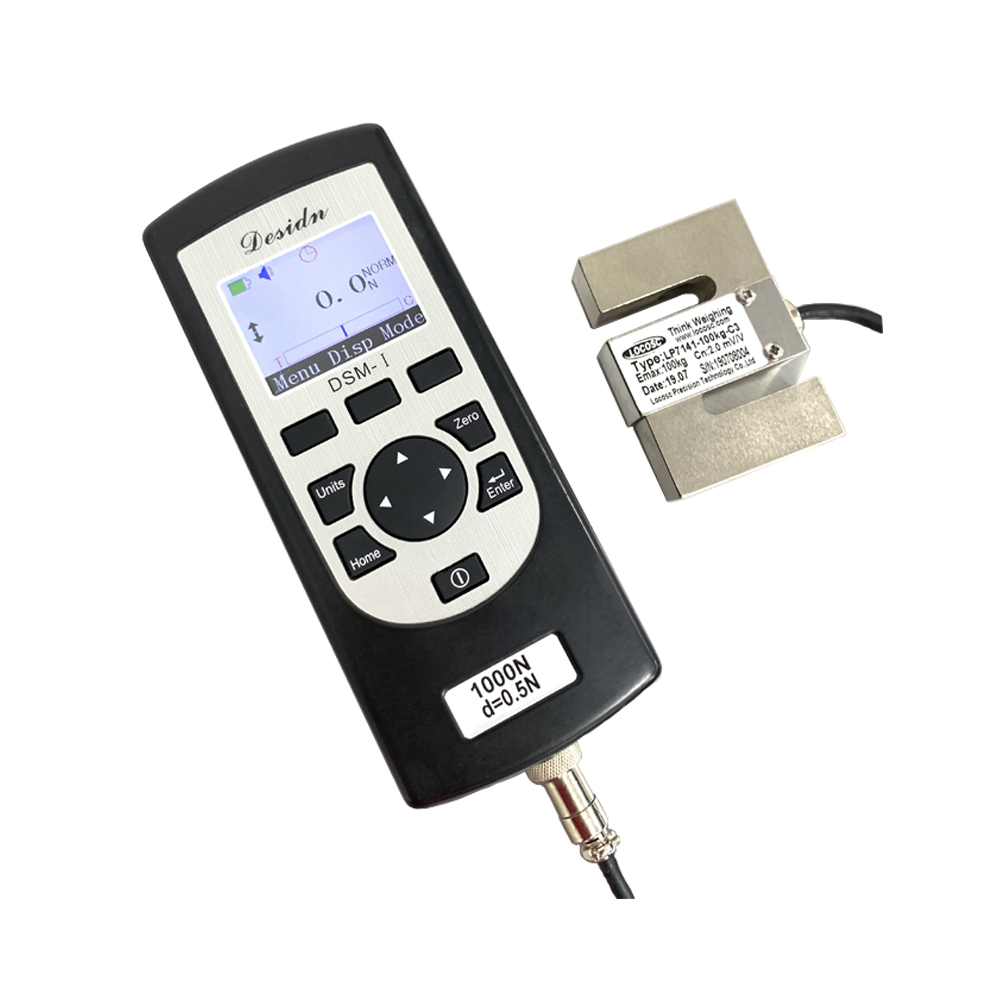

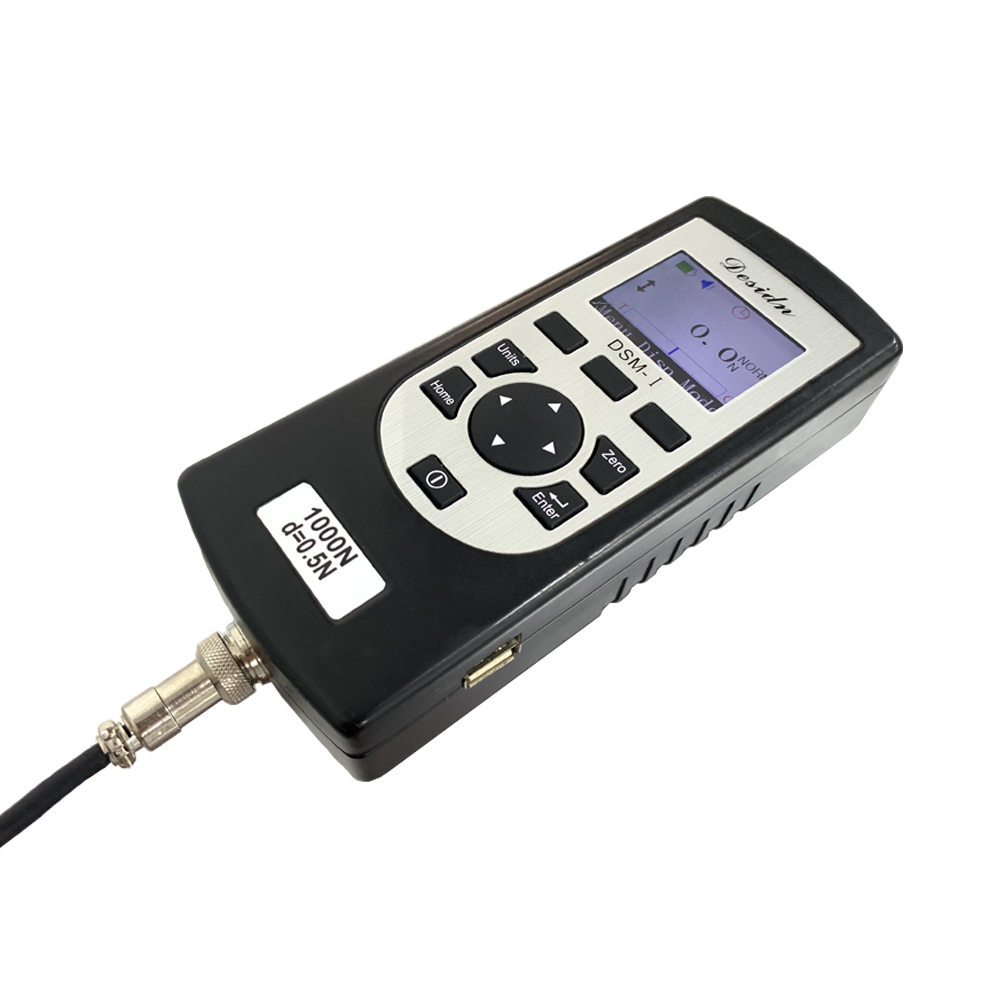

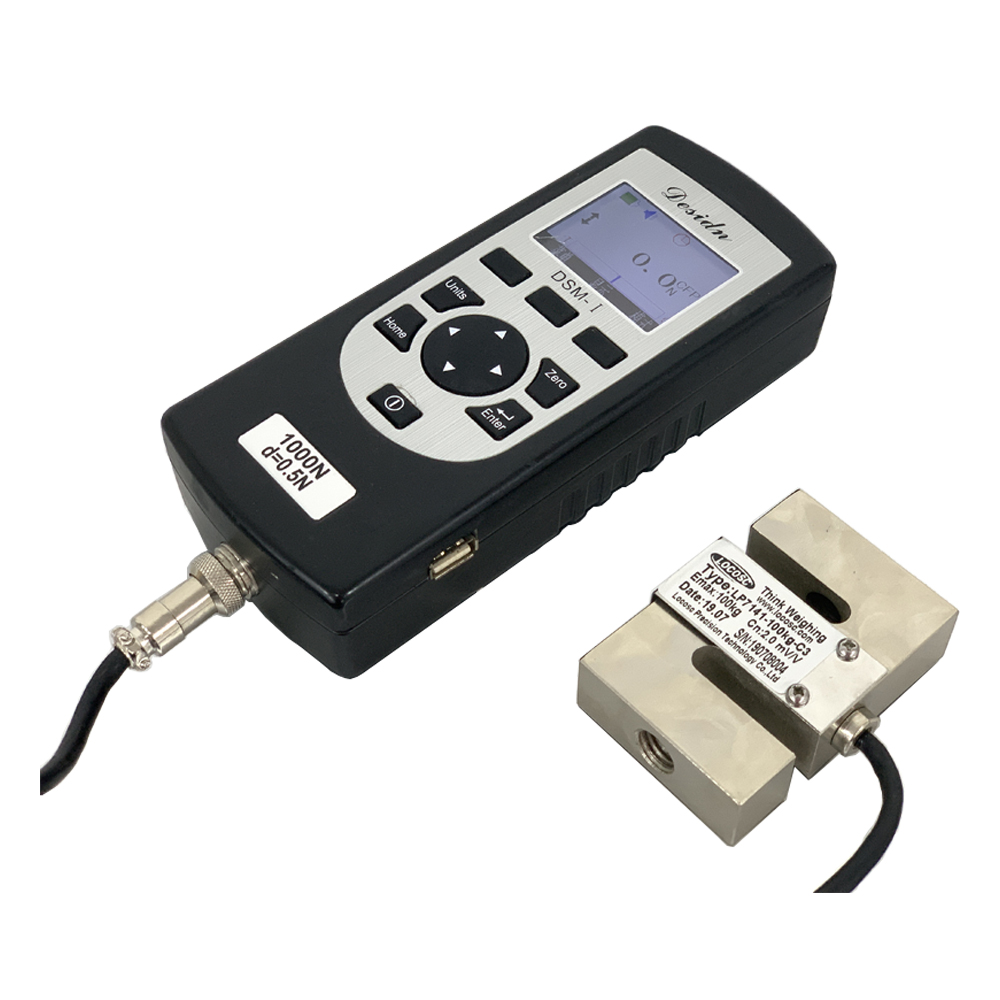

LP7657 Series Digital Push Pull ForceTesting Gauges

DOWNLOAD: LP7657 Series Digital Force Gauges User Manual

DSM series digital force gauge is a universal portable push and pull load testing instruments, has the advantages of small volume, light weight, easy to carry, multi-function, high precision characteristics, is suitable for sliding load testing of various products, insertion force test, destruction test, a small experimental machine and can be combined with all kinds of machine and fixture composition for different purposes.

■High resolution and high precision, high sampling rate up to 960Hz;

■ free to set upper and lower deviation data, automatically determine whether

or not qualified;

■ Display flip function: test direction can be 180 degrees turn display;

■ Full color display: TFT2.4 ', 320*240262K color lcd;

■ 50 groups of test data, and automatically calculates the average storage

data value, maximum value, minimum value;

■ Three unit N, kgf, lbf automatic conversion;

■ Peak hold automatic unlocking function (0~99 seconds set free);

■ No operation automatic shutdown (0~99 minutes set free);

■ With 7 measurement modes;

■ Support for multiple languages;

■ The serial output, which can be connected to the computer for analysis the

printing process.

■Can set the gravity acceleration value;

■ Have the pull pressure bar, and to change the colors of the progress bar and

the voice prompt overload tensile stress;

■ With the layer menu operation interface original

■ Automatic monitoring of battery, battery instrument will automatically shut

down.
