TM-A Series Barcode Price Computing Printing Scale

TM-A User’s Manual for Scale

Descriptions

1.Label and receipt printing

2.Large storage with Max4000 plu,31 or 71 preset keys available

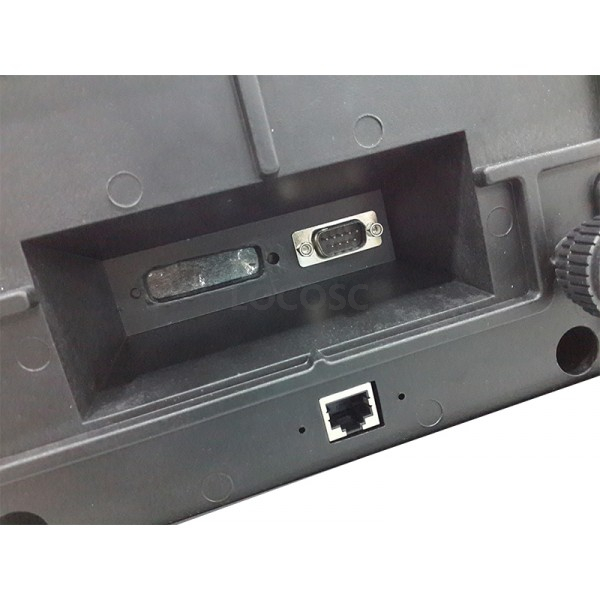

3.Communication interface :RS232(standard) ether net(option)

4.Easy to set the label-format and other details through the free software

5.Manually and automatically printing

6.Inventory and report forms printing

7.Various label formats and designs

Specification

Capacity 3kg 6kg 15kg 30kg

Division  1g 2g 5g 10g

Minimum 20g 40g 100g 200g

Resolution 1/3000F.S

Dimension (mm)428×381×500

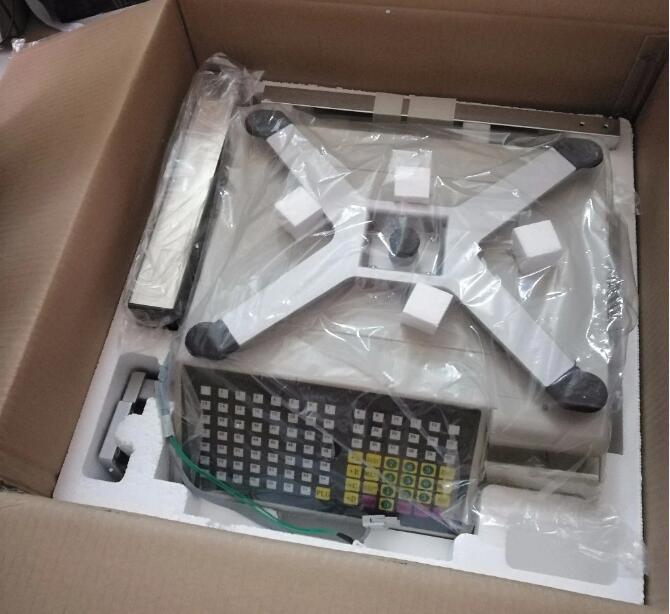

Packing size:(mm)520 X 520 X 240

G. W/N.W: 11 kgs/9 kgs.

Power: AC 220V or 110V (-15%～+10%)    Frequency: 50~60Hz

Temperature:Working Temperature: 0℃～40℃(240F-1040F)

Save Temperature:  -10℃～40℃

Humidity: ≤85%RH

Max metage: 3kg（1g）、6kg（2g）、15kg（5g）、30kg（10g）

Veracity:1/3000 F.S

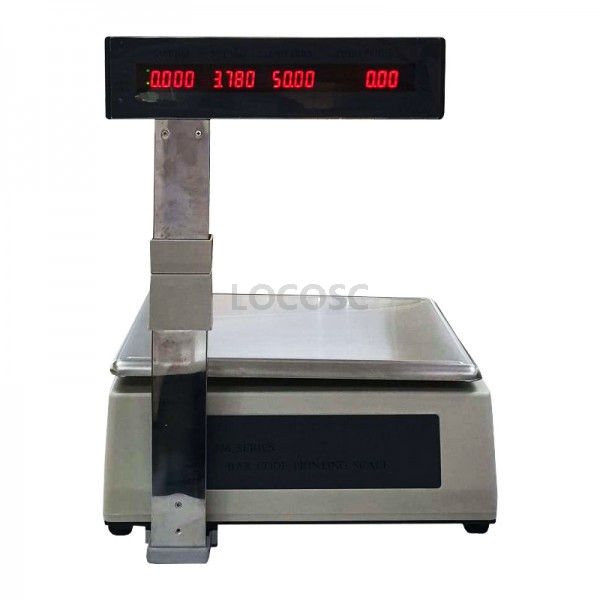

Display: Double-face red light LED: tare 4 bits, net weight 5 bits, unit price 5 bits, total price 7 bits.

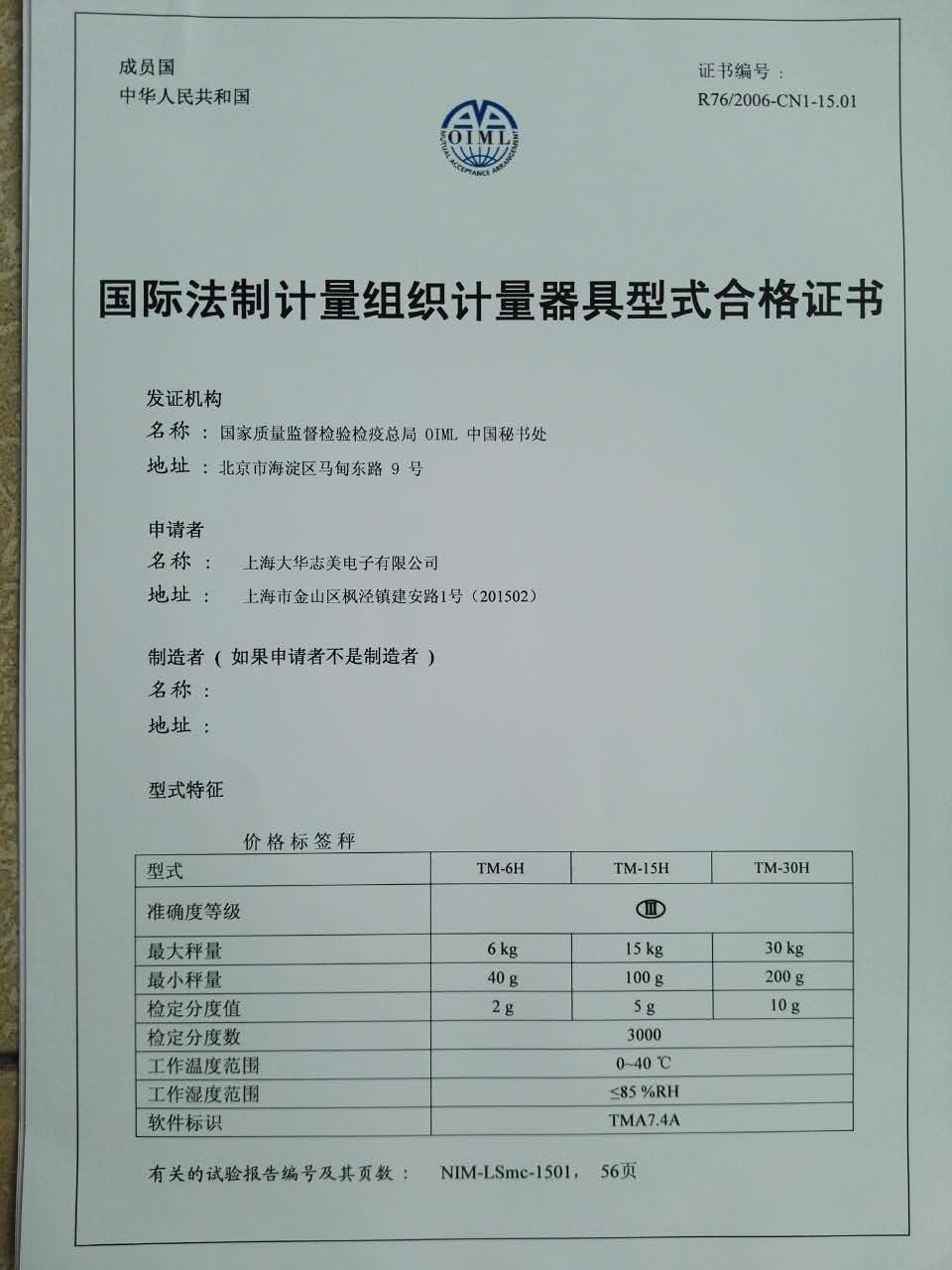

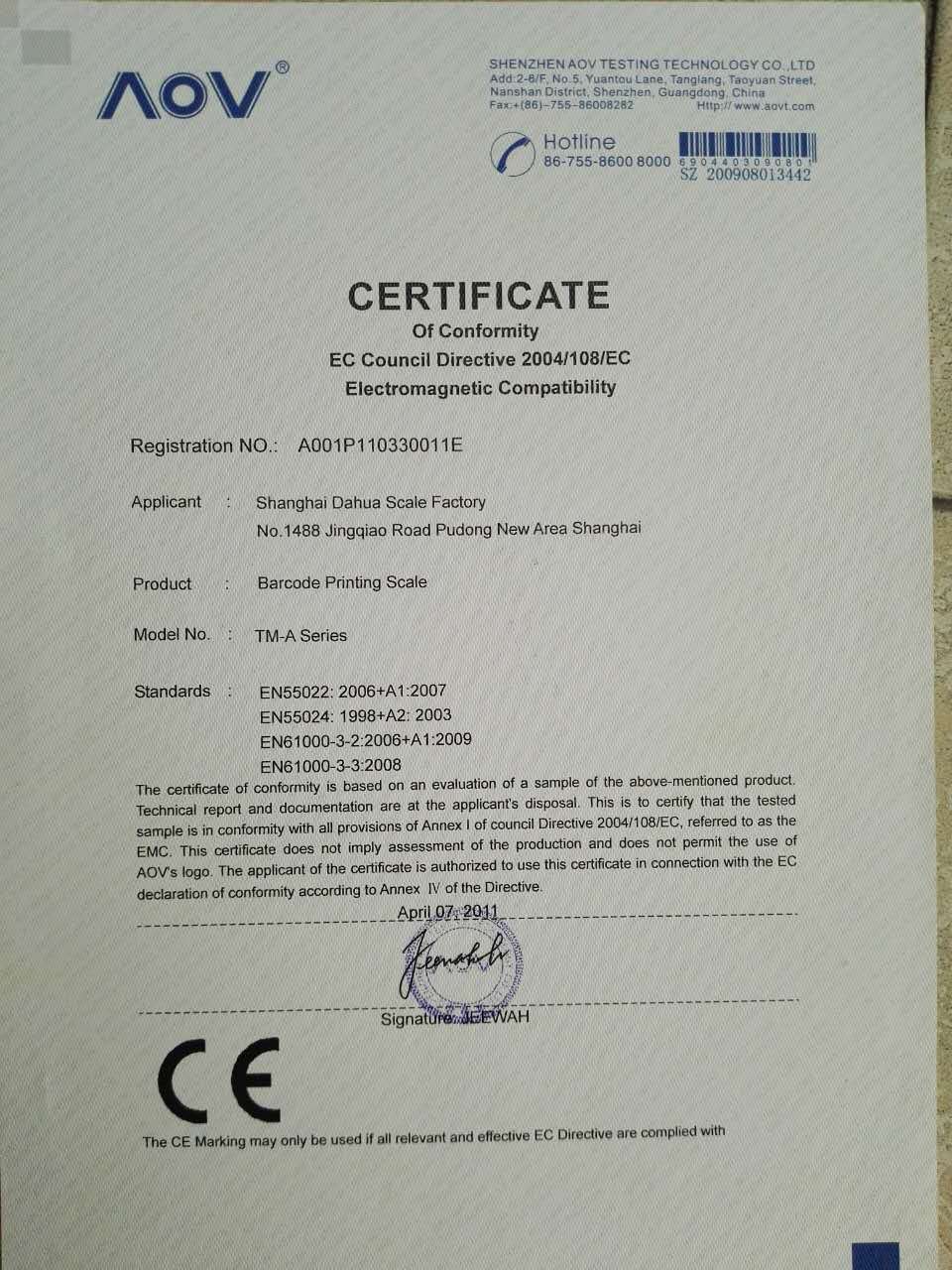

Certificate
