LP7381
USA LOCOSC
-10~+40℃
-10~+40℃
China
| Quantity: | |
|---|---|

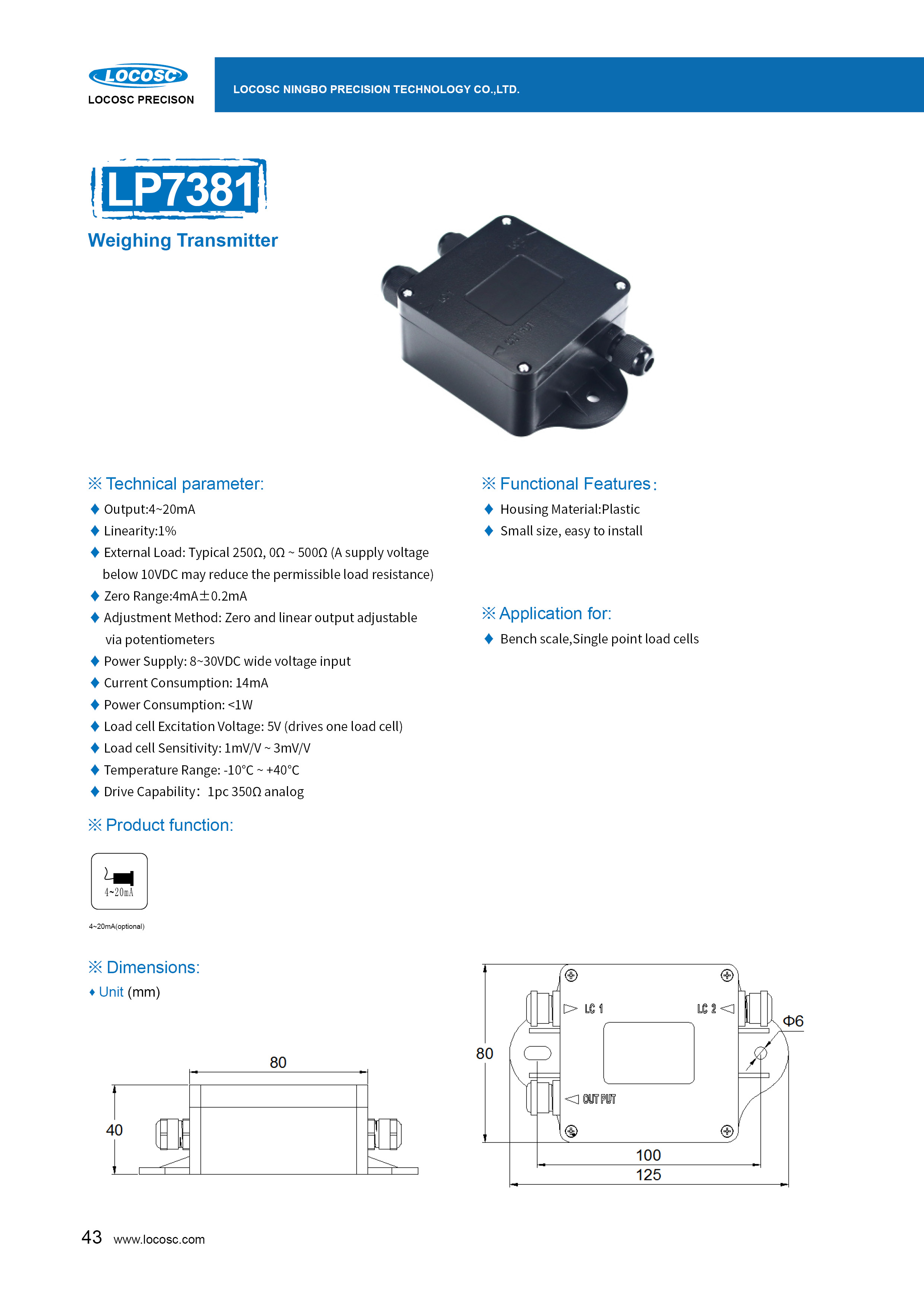

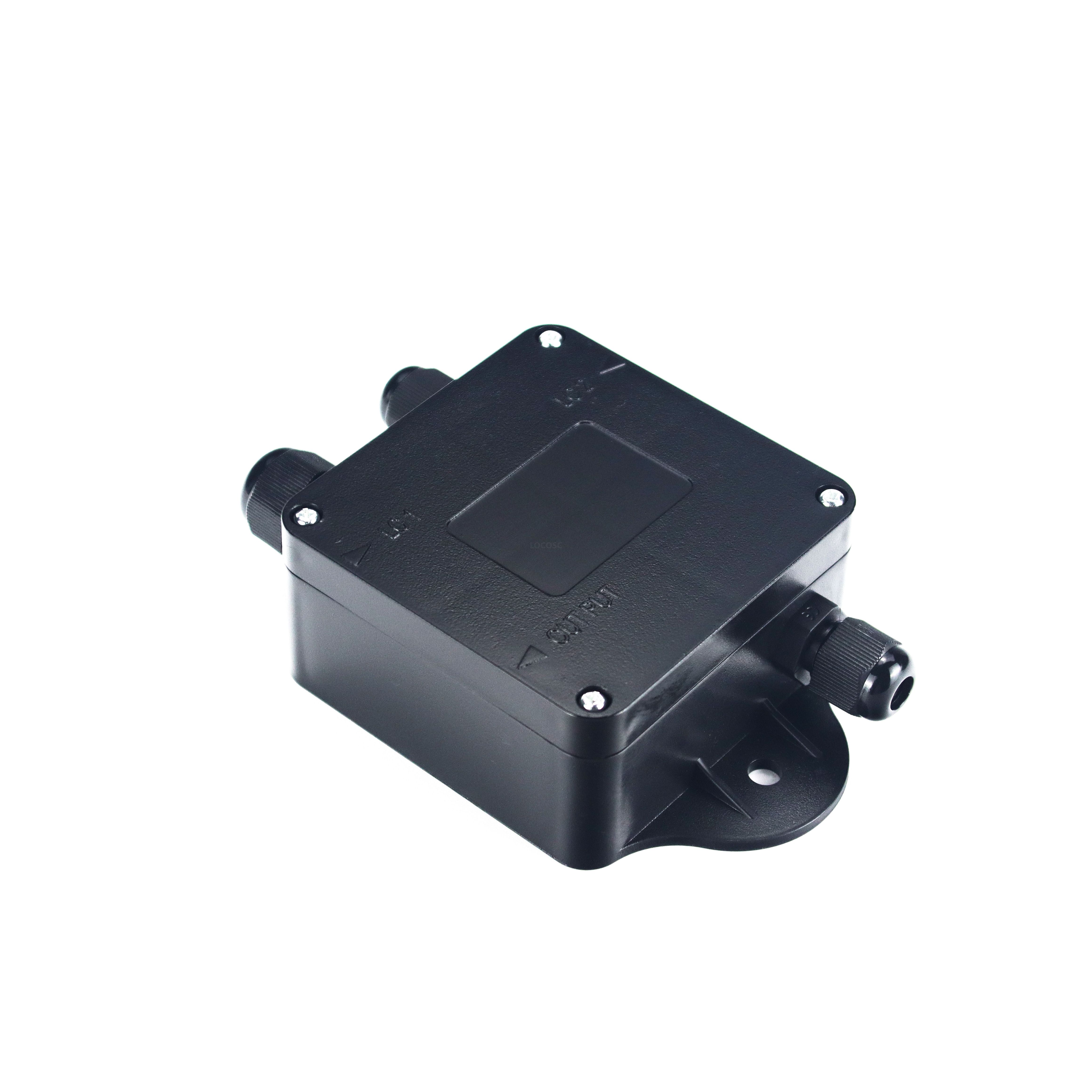

LP7831 Digital Load Cell Weight Transmitter
★ Output:4~20mA
★ Linearity:1%
★ Maximum load resistance:Typical 250Ω ,0Ω ~500Ω(A supply voltage below 10VDC may reduce the permissible load resistance)
★ Zero Range:4mA±0.2mA
★ Calibration Methods:Zero Balance and linear output are adjusted via 4~20mA.
★ Power Supply:8~30VDC Wide Voltage Input
★ Current Consumption:: 14mA
★ Power Consumption: <1W
★ Load cell excitation voltage: 5V drives one load cell
★ Load Cell Rated Output:1mV/V ~ 3mV/V
Operating Temperature Range:-10℃~+40℃
Housing Material:Plastic
Size:125*80*40mm
Mounting Hole Spacing:100mm
LP7831 Digital Load Cell Weight Transmitter
★ Output:4~20mA
★ Linearity:1%
★ Maximum load resistance:Typical 250Ω ,0Ω ~500Ω(A supply voltage below 10VDC may reduce the permissible load resistance)
★ Zero Range:4mA±0.2mA
★ Calibration Methods:Zero Balance and linear output are adjusted via 4~20mA.
★ Power Supply:8~30VDC Wide Voltage Input
★ Current Consumption:: 14mA
★ Power Consumption: <1W
★ Load cell excitation voltage: 5V drives one load cell
★ Load Cell Rated Output:1mV/V ~ 3mV/V
Operating Temperature Range:-10℃~+40℃
Housing Material:Plastic
Size:125*80*40mm
Mounting Hole Spacing:100mm
