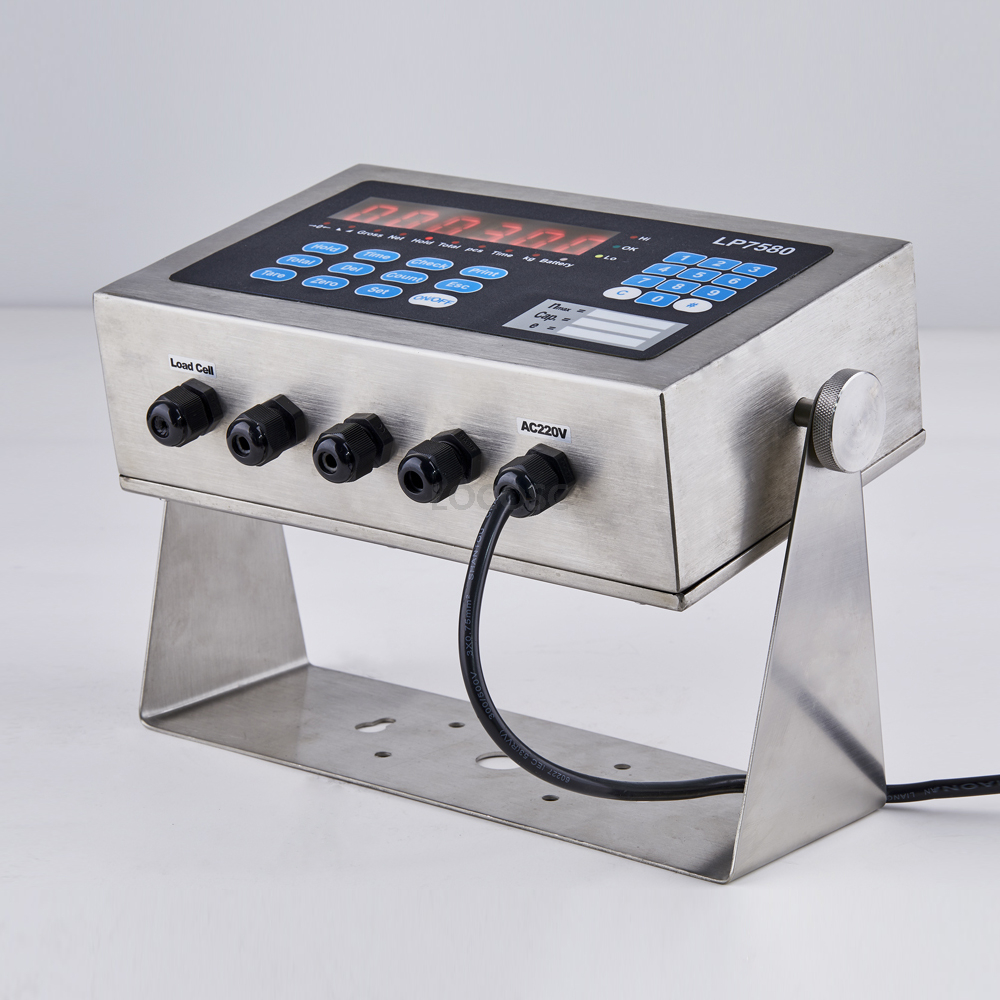

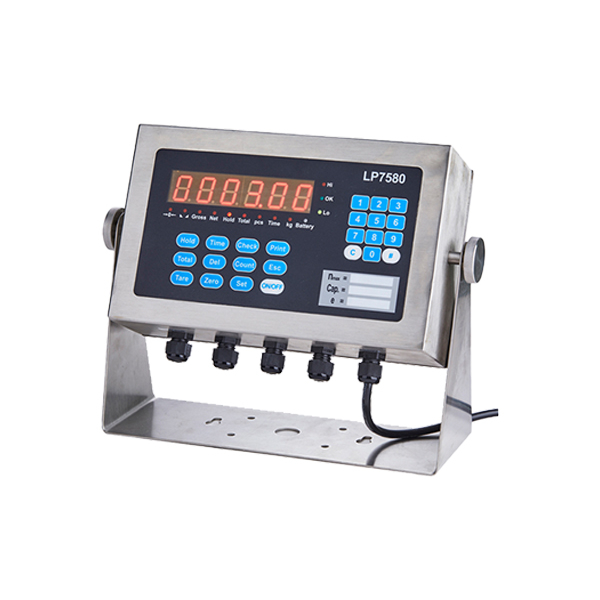

Packaging details: foam and carton.
Application for: high precision bench scale, floor scale, waterproof bench scale, hopper scale, pet scale, load cells, etc.

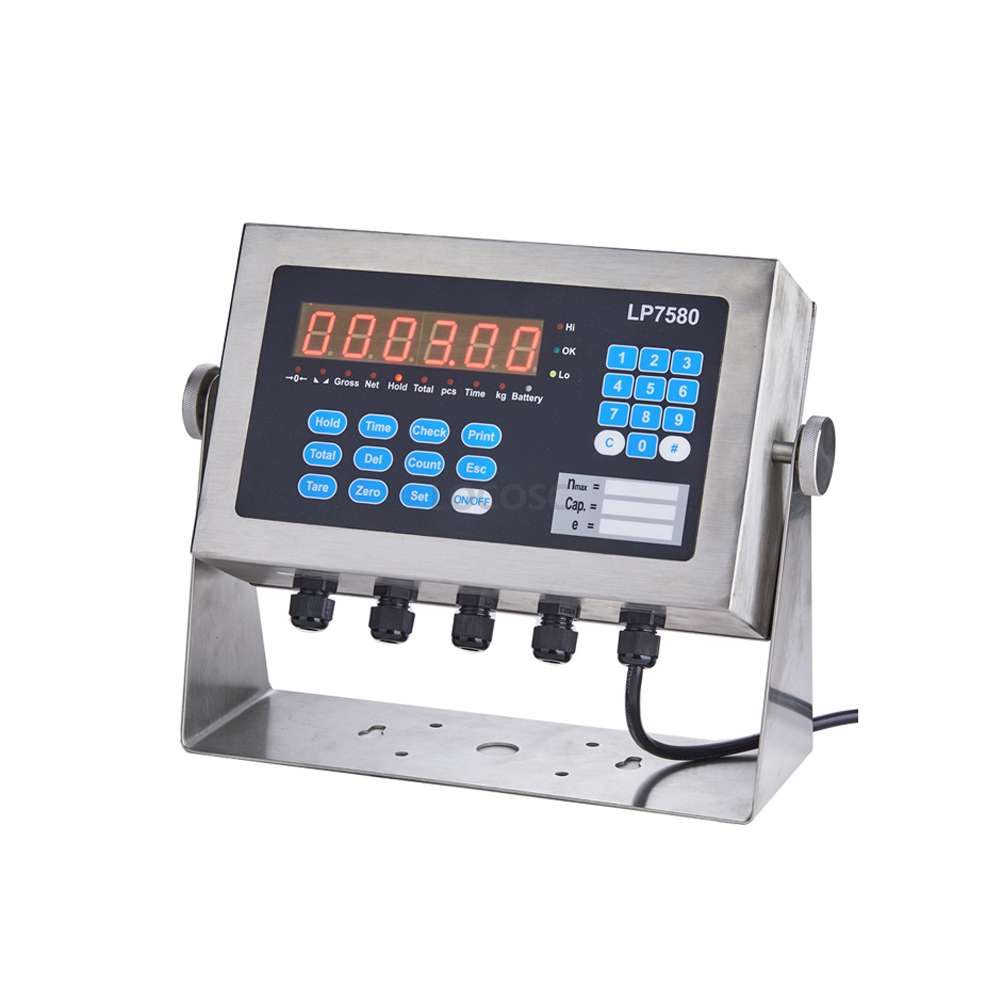

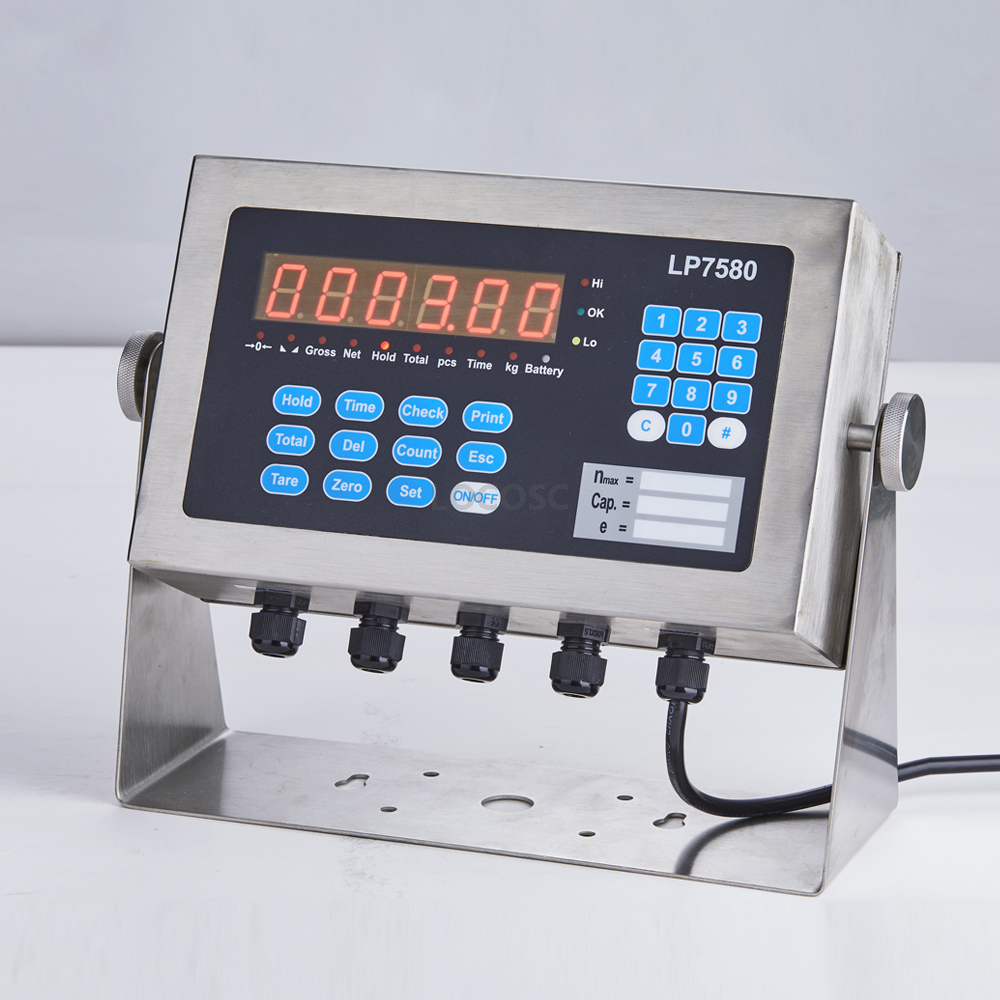

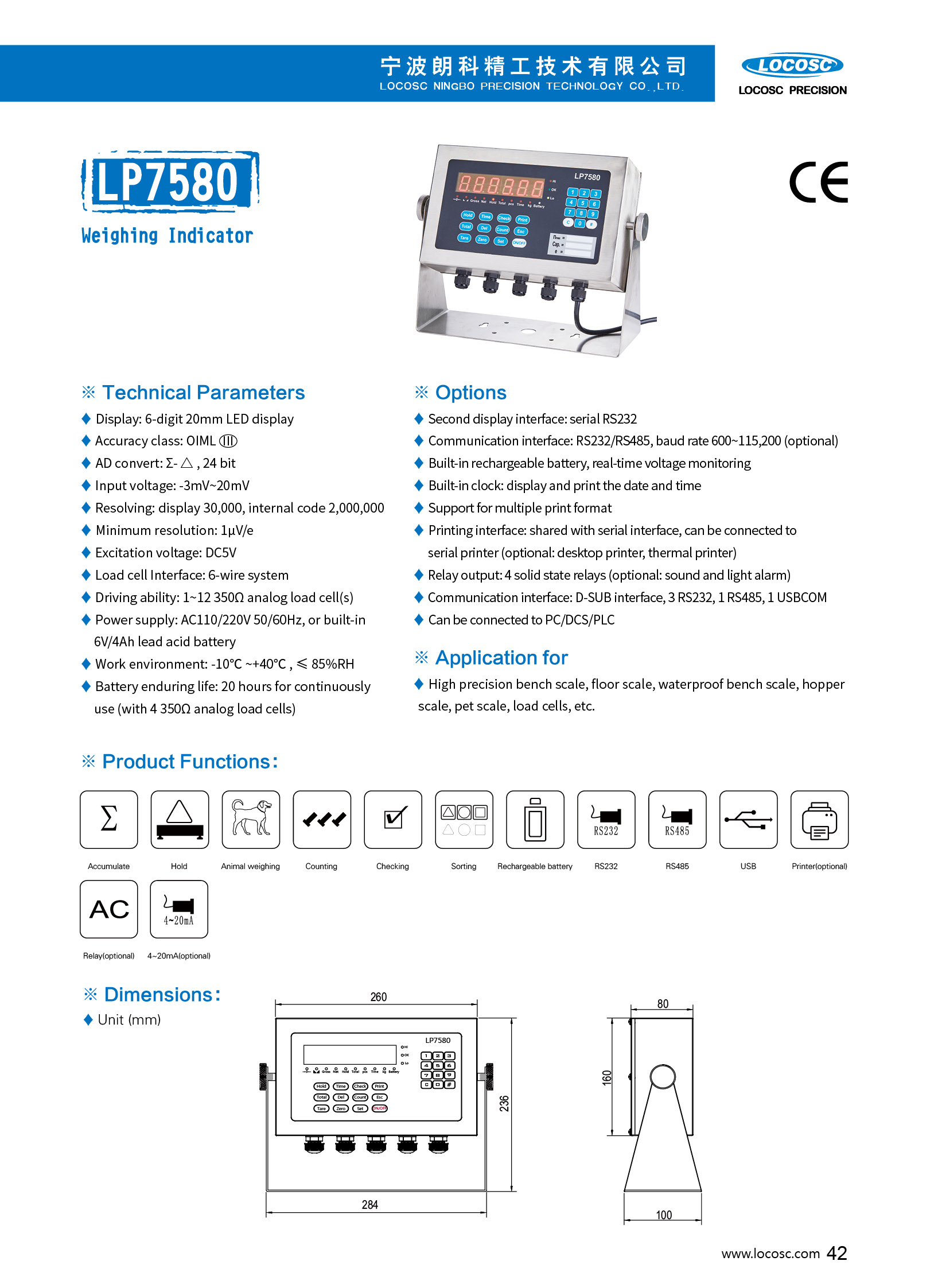

Technical parameters:
Display | 6-digit 20mm LED display |
Accuracy class | OIML III |
AD convert | Σ-△, 24 bit |
Input voltage | -3mV~20mV |
Resolving | display 30000, internal code 2000000 |
Minimum resolution | 1μV/e |
Excitation voltage | DC5V |

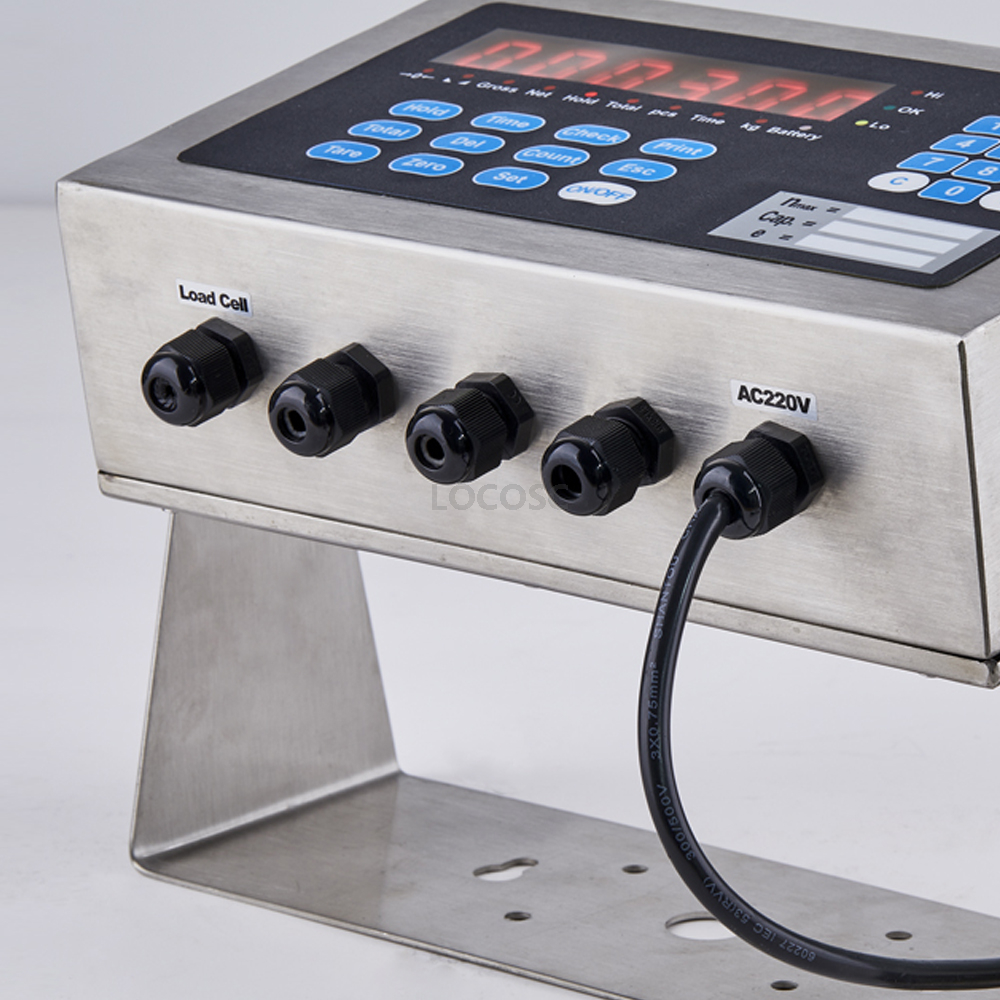

Load cell Interface | 6-wire system |
Driving capability | 1~12 350Ω analog load cell(s) |
Power supply | AC110/220V 50/60Hz or built-in 6V/4Ah lead acid battery |
Operating temperature | -10ºC ~ +40ºC |
Humidity | ≤85%R.H |
Battery enduring life | 30 hours (with 4 350Ω analog load cells) |
Options:
1. second display interface: serial RS232;
2. communication interface: RS232/RS485, baud rate 600~115200 (optional);
3. built-in rechargeable battery, real-time voltage monitoring ;
4. built-in clock: display and print the date and time;
5. support for multiple print format;
6. printing interface: shared with serial interface, can be connected to serial printer (optional: desktop/thermal printer);
7. relay output: 4 solid state relays (optional: sound and light alarm);
8. communication interface: D-SUB interface, 3 RS232, 1 RS485, 1 USBCOM;
9. can be connected to PC/DCS/PLC.
Packaging details: foam and carton.
Application for: high precision bench scale, floor scale, waterproof bench scale, hopper scale, pet scale, load cells, etc.
Technical parameters:
Display | 6-digit 20mm LED display |
Accuracy class | OIML III |
AD convert | Σ-△, 24 bit |
Input voltage | -3mV~20mV |
Resolving | display 30000, internal code 2000000 |
Minimum resolution | 1μV/e |
Excitation voltage | DC5V |
Load cell Interface | 6-wire system |
Driving capability | 1~12 350Ω analog load cell(s) |
Power supply | AC110/220V 50/60Hz or built-in 6V/4Ah lead acid battery |
Operating temperature | -10ºC ~ +40ºC |
Humidity | ≤85%R.H |
Battery enduring life | 30 hours (with 4 350Ω analog load cells) |
Options:
1. second display interface: serial RS232;
2. communication interface: RS232/RS485, baud rate 600~115200 (optional);
3. built-in rechargeable battery, real-time voltage monitoring ;
4. built-in clock: display and print the date and time;
5. support for multiple print format;
6. printing interface: shared with serial interface, can be connected to serial printer (optional: desktop/thermal printer);
7. relay output: 4 solid state relays (optional: sound and light alarm);
8. communication interface: D-SUB interface, 3 RS232, 1 RS485, 1 USBCOM;
9. can be connected to PC/DCS/PLC.

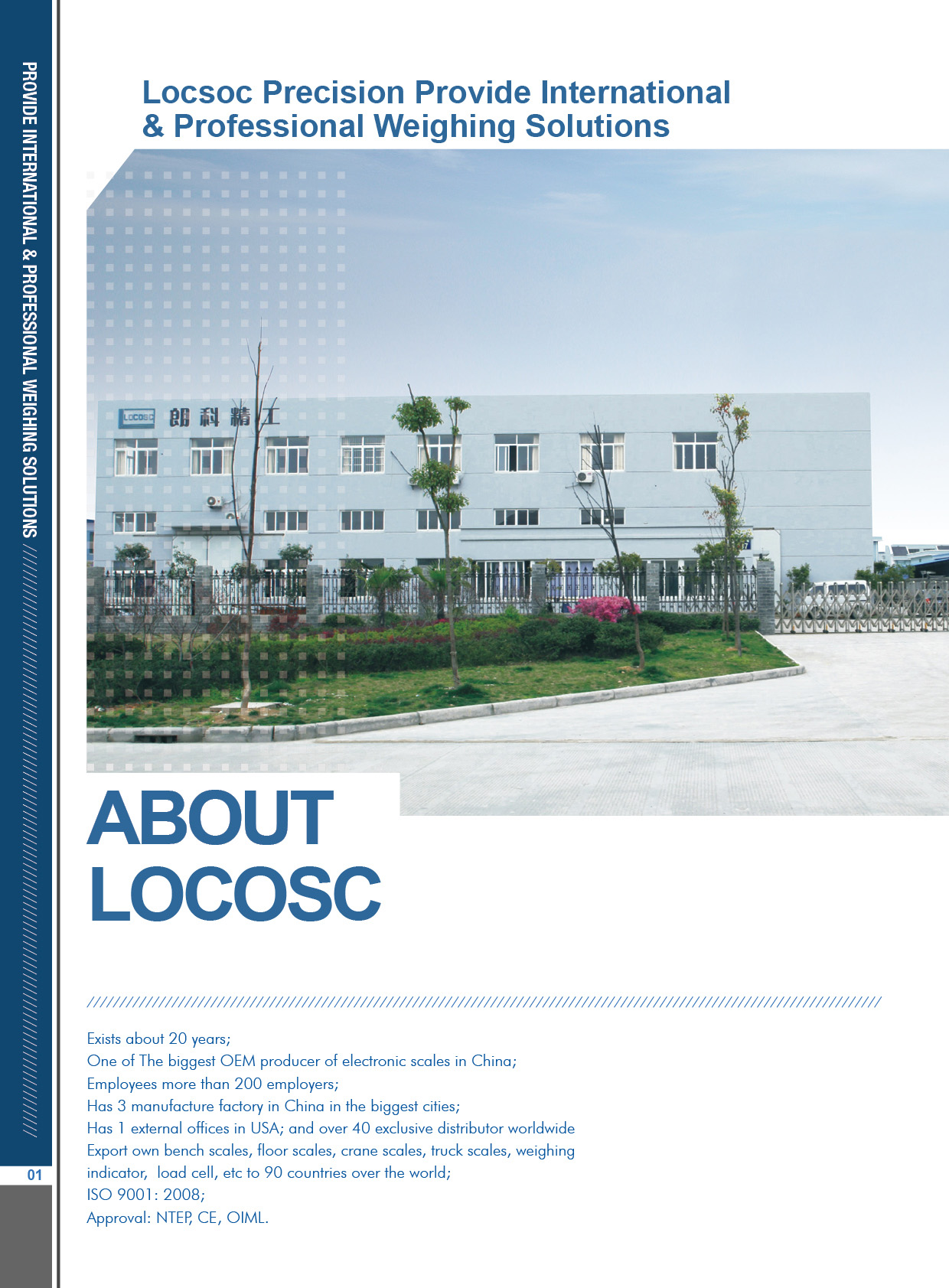

ABOUT LOCOSC
