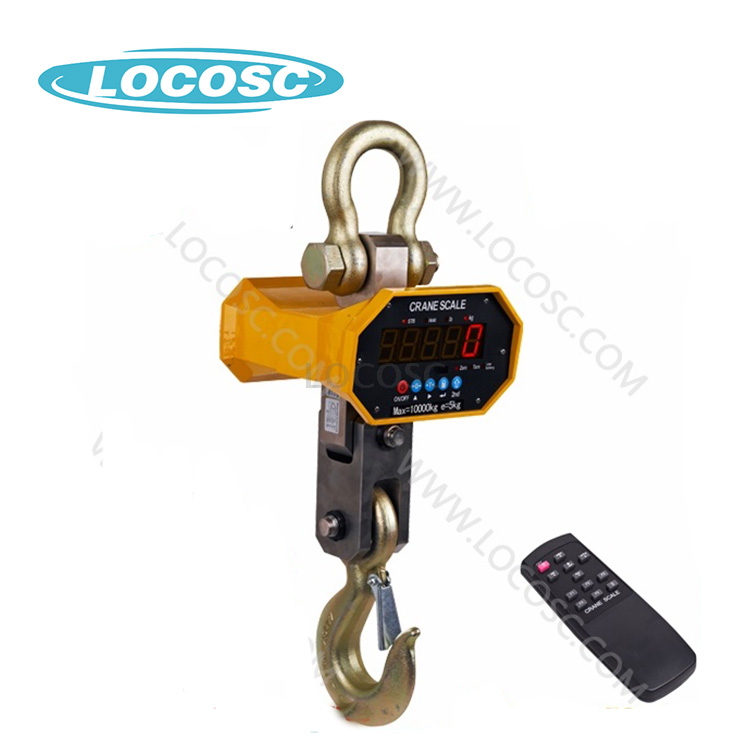

OCS-A1 Electronic Wireless Crane Scale

Type:Crane Scale Display Type:LED/LCD Enclosure:Die-casting aluminum Power Supply:Rechargeable battery Rated Load:10000KG Accuracy:3000e / 5000d Item Name:Load cell crane scale Keypad:waterproof Control:Infrared remote Shackle:alloy steel US $30-300 / Sets | 10 Set/Sets (Min. Order)

Brand:
LOCOSC

Quantity:
Availability:





Inquire Add to Basket

Electronic-Crane-Scale-Weight-Hooks

Load cell crane scale

Die-casting aluminum enclosure, sand-blasting and powder-coating for anti-corrosion
Sealing design, moisture proof
Alloy steel shackle to protect from over load.
High capacity rechargeable battery
Waterproof keypad
Infrared remote control
Capacity: 1000 kg 2000kg 3000kg 5000kg 10000kg

Specification

38mm LED or 30mm LCD display
Accuracy: OIML III
Tare range: 100% F.S.
Zero range: 2% F.S.
Safe overload: 120% F.S.
Ultimate Overload: 400% F.S.
Overload alarm: 100% F.S.+9e
Battery:6V 4.5Ah
Battery life: >80 hours
Temp. range:-10°C~40°C

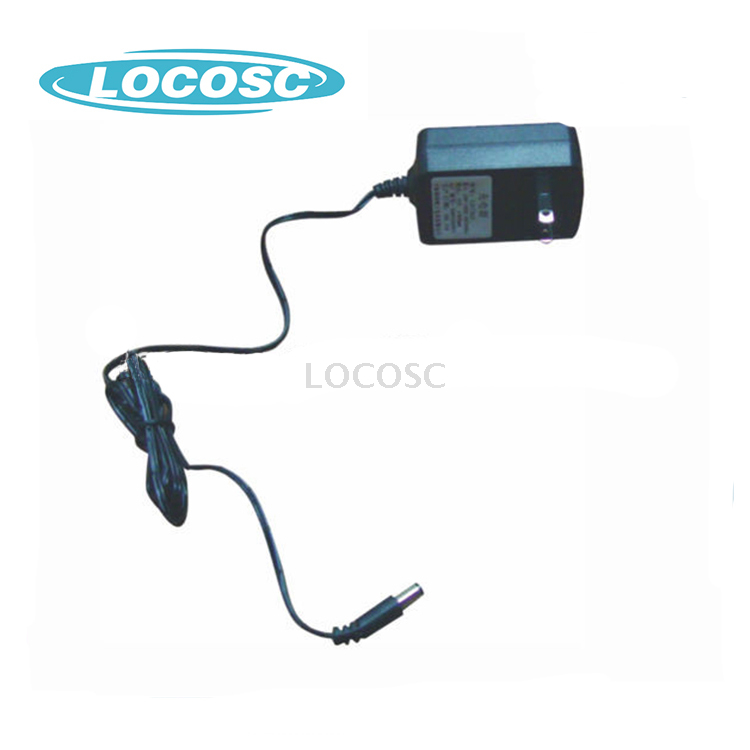

Adapter: 9V 1200ma

Basic Function:

Zeor / Tare / Hold / Total
Low voltage alarm
Battery supervision
Overload alarm
Kg/lb conversion
Gravity acceleration set

Upgrade function

Tare set
Total / Delete / Clear total / View total weight
Resolution switch
Auto power-off set
Display luminance set
Anti-motion set

Item No.	Model	Capacity	Divison(kg)	A	B	C	D	Weight(kg)	Ctn Size(mm)
LP7650B-3t	OCS-A1-3	3t	1/0.5	242	290	156	460	9.8	510340280
LP7650B-5t	OCS-A1-5	5t	2/1	242	290	156	511	14	510340280
LP7650B-10t	OCS-A1-10	10t	5/2	242	290	156	768	32	510340280
LP7650G-3t	OCS-A1-3	3t	1/0.5	242	290	156	512	8.5	510340280
LP7650G-5t	OCS-A1-5	5t	2/1	242	290	156	580	12.5	510340280
LP7650G-10t	OCS-A1-10	10t	5/2	242	290	156	610	30	510340280
